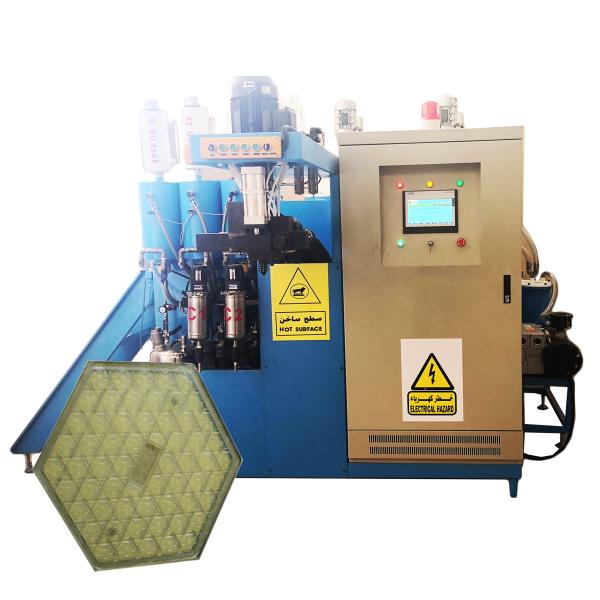

Pould Punch Making PU Elastomer Casting Machine

Name: Pould Punch Making PU Elastomer Casting Machine
Brand: yongjia
Price: 1 USD

Buy cheap Pould Punch Making PU Elastomer Casting Machine product

Place of Origin : Jiangsu, China

Brand Name : yongjia

Certification : ce

Supply Ability : 100 Set/Sets per Month high temperature polyurethane pu elastomer casting machine

Packaging Details : sea worthy wooden box for PU Polyurethane Elastomer Foam Casting Injection Machine For Pould Punch Making

MOQ : 1 Set/Sets

Price : Negotiable

Model Number : PU Elastomer Casting Machine

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Delivery Time : 45-60 days

Power (kW) : 25~31kW

Weight (KG) : 2000 KG

Condition : New

Product Type : Foam Net

Machine Type : Foaming machine

Voltage : 380V

Dimension(L*W*H) : 2300*2000*2300 mm

Warranty : 1 YEAR

After-sales Service Provided : Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Key Selling Points : Multifunctional

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Turkey, Pakistan, India

Showroom Location : Turkey, Pakistan, India

Applicable Industries : Manufacturing Plant

Mix head : mix evenly, no bubble

Injection Pressure : 0.01-0.1Mpa

Injection time : 0.5~99.99S (correct to 0.01S)

Temperature control : ±2℃

Repeated injection accuracy : ±1%

Color : deep blue/cream color/red

Application : pu wheel, roller, dumbbell etc.

Name : pu elastomer casting machine

Raw material : Polyol and Isocyanate

Port : Ningbo for pu elastomer casting machine

Contact Now

PU Polyurethane Elastomer Foam Casting Injection Machine For Pould Punch Making

PU Elastomer Casting Machine Machine Introduction:

It is used to produce castable polyurethane elastomers with MOCA or BDO as chain extenders. PU elastomer casting machine is suitable for manufacturing various kinds of CPUs such as seals, grinding wheels, rollers, screens, impellers, OA machines, wheel pulleys, buffers, etc. product.

Technical Parameters
Voltage	380V 50Hz
Output	100-800 G/Min; 1-3.5kg/Min; 2-5kg/Min; 3-8kg/Min; 5-15kg
Material Tank Volume	30L-500L
Power	25-35KW
Injection Pressure	0.01-0.1Mpa
Injection Time	0.5~99.99S (Correct To 0.01S)
Mixing Head	Around 6000rpm, Forced Dynamic Mixing
Compressed Air Requirement	Dry, Oil Free P:0.6-0.8MPa Q:600L/Min (Customer-Owned)
Vacuum Pump	2X-15 Speed Of Exhaust:15L/S
Input Power	Three-Phrase Five-Wire, 380V 50HZ
Temperature Control System	18~24KW
Color (Selectable)	White/Blue/Red
Weight	1500kg

Mix Head:

1. Mixing by agitator for better mixing performance
2. New-designed pouring valve for precision dosing, high degree of vacuum ensures no visual cellular
3. Color additive available
4. Individual equipped controller for mix head

Components Storage and Temperature Conditioning:

1. Jacketed tanks with visual level tube
2. Digital pressure gauge for control and visualization of pressure with max. alarm value
3. Electrical resistance heater for temperature conditioning
4. Low speed agitator for even temperature distribution

Metering unit:

1. High precision, low speed positive displacement gear pump
2. Variable output adjusted by VFD
3. Shaft seal with coupling and DOP

Advantages:

1.High temperature resistant low speed high precision metering pump,accurate measurement,random error within±0.5%.
Material output adjusted by frequency converter with frequency conversion motor,high pressure and precision,simple and rapid rapid ratio control;
2.High performance mixing device,adjustable pressure,accurate material output synchronization and even mix;New type mechanical seal structure avoids reflux problem.
3.High-efficiency vacuum device with special mixing head ensures product no bubbles;
4.Adopting electromagnetic heating method to heat transfer oil,efficient and energy saving;Multi-point temp.control system ensures stable temperature,random error<±2°C.
5.Adopting PLC and touch screen man-machine interface to control pouring,automatic cleaning flush and air purge.stable
performance.high operability,which can automatically distinguish,diagnose and alarm abnormal situations as well as display abnormal factors;

Technical Parameter

Application:

The elastomer casting machine is widely used in the ceramic industry.

Pould Punch Making PU Elastomer Casting Machine

Advantages of Polyurethane Elastomer Casting Machine to Make Tile Ceramic

1. Provide tiles with smooth and slightly shiny surface, and can in many cases replace the punches made ofpolished steel, reducing costs and eliminating the use of the brush

2. Suitable for the production of porcelain glazed tiles and unglazed tiles
3. Long service life thanks to the special the special welding, made with special wear-resistant wires
4. Available in all sizes and shapes requested by the tile ceramic market
